HB Model Designation

(by leg size)

WEIGHT

(LBs)

Estimated Excavation

Dimensions for cylindrical

shaped base (ft).

 (exact size varies per config)


Min. Volume of Concrete

(cubic yards)


Overall Length of Legs

(Inches)

PRICE

HBT-172133Same as aboveSame as above

72"

$472

HBT-225

145"                   ""                 "72"$519
HBT-288155
"                   ""                 "72"$696

HBT-350

175

per specific config.AskVaries$914

HINGE BASES

HINGE BASES ON THREADED RODS (ADJUSTABLE PLUM) WITH STEEL TEMPLATES. TABLE 2-B

FULLY WELDED, NON-ADJUSTABLE VERSION (REBAR HOOKED LEGS).  TABLE 2-A.

Below is a gallery of a Hinge Base Installation.

Sonatube Installation Note:  Although we depict the base installation with a Sonatube here as the hole form, this item is often not necessary for proper foundation installation.  If there is a risk that the hole walls will cave in by the time the concrete is poured, a Sonatube may be helpful.  If not, then it is actually best just to pour your concrete foundation in 'undisturbed' earth (since a hole with a sonatube form needs to be backfilled with soil or sand around the edges, this would be considered in constuction lingo as a 'disturbed' hole, and thus it also requires proper tamping or compaction of that backfill) .  Most ground soil types are stable enough so that the walls will hold up for several days, without caving in.  The main benefit of a 'Sonatube' is to provide the exact specified shape of the foundation and thus save on the cubic yards of concrete used.  However, since a 4 ft. dia. by 12' Sonatube costs between $300 and $400, it is often an acceptable cost trade-off to simply pour 2 or 3 extra yards of concrete in a back-hoe excavated hole.

*Sizes & amounts are approximate only--will vary per model & site conditions.   Engineering Calcs will provide exact details on dimensions and all specs.

Pre-fabbed, welded RE-BAR CAGES for your base are also available starting around $400, depending on the size of your base.  This diagram shows a general rebar cage in footing. Here are some general base installation instructions also.

Below are pictures of our Stainless Steel Bases (click to enlarge).

All necessary instructions, diagrams, and engineering calculations are furnished with the purchase of a Hinge Base.
To choose the correct Hinge Base size, simply match your bottom tower leg diameter with the model.

STAINLESS STEEL, FULLY WELDED PIPE VERSION, stainless steel, w/mounting sleeves  TABLE 2-C.

*Use lower tower section as template.  Currently out of production.  Please contact for help if required.

HB Model Designation

(by leg size)

WEIGHT

(LBs / KGs)

Estimated Excavation

Dimensions for cylindrical

shaped base (ft).

 (exact size varies per config)


Min. Volume of Concrete

(cubic yards)


Overall Length of Legs

(Inches)

PRICE

HBJ-10039  /  17.752.0' dia. x 3.0' depth0.35

34"

$177

HBJ-131

54  /  24.52.8' dia. x 4.0' depth0.9236"$214
HBJ-17272  /  33
3.0' dia. x 6.0' depth1.5741"$259

HBJ-225

89  /  40.5

3.5' dia. x 7.5' depth2.6750"$269
HBJ-288118  /  544.0' dia. x 8.0' depth3.7357"$315
HB-288-SOL------------
PER SPECIFIC CONFIG.-----------------------$1170

HB-350-SOL

------------

PER SPECIFIC CONFIG.-----------------------S1170

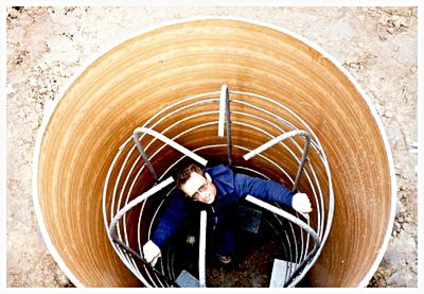

This photo shows a hole already dug with 'Sona tube' used to conveniently form the cylindrical sides and a re-enforcing rod cage pre-fabbed and positioned.   Photos from Jeff Basting.

Stainless Steel

HB Model

(by leg size)

Estimated Excavation

Dimensions for cylindrical

shaped base (ft).

       (exact size varies per config)



Min. Volume of Concrete

(cubic yards)

PRICE

HBSS-131same as aboveSame as above
HBSS-172

same as above

Same as above$483
HBTSS-225"              ""                   ""                 "

HBTSS-350

per specific config.

AskAsk

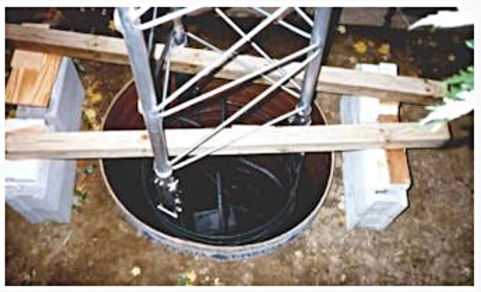

Next, the bottom 8 ft. tower section is used as a template to position and hang the Hinge Base legs over the middle of the hole.  4" x 4" planks of wood serve as useful support beams for the section and base.

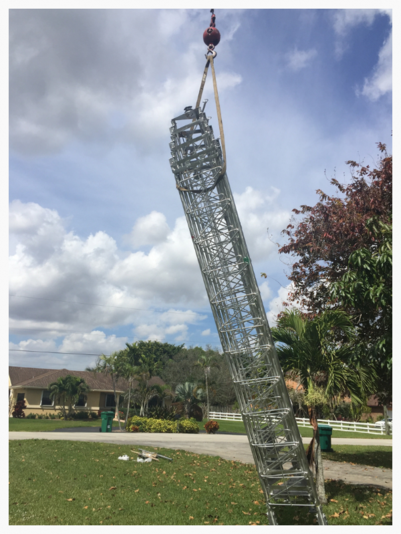

Our simplest bases, provide the anchor structure for the tower, and at the same time allow the tower to be "hinged" over from the vertical to the horizontal position (and vice versa) with some external support like a crane, a strategically mounted winch, or a few strong individuals on the ground walking the tower upwards.

This kind of base is ideal for owners who know that they will not be tilting their tower over very often, maybe about once a year, and can afford to hire a crew or crane to erect, and to hinge-over and back up again when necessary.  Those who know they will want more frequent and immediate access to their antennas or mounted instruments may want to consider our very convenient Fold-Over-Kit systems.   For more information on the functional differences between the Hinge Base and Fold Over Kits, please see this FAQ link.


Here are a few pictures which show the basic process of Hinge Base installation:

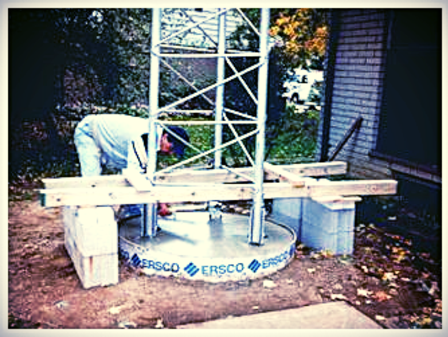

After checking the straightness of the upright tower legs with a carpenters' level, the concrete is poured and top wiped smooth!  Notice how the base is positioned so that when the tower is folded over (on two closest legs to the screen), the tower top will descendaway from the house.  Positioning is important
