DESIGNATION


Height (ft.) --

WindLoad (sq.ft.)

Windspeed (mph)


​FT.  LOAD  MPH

SECTION COMPOSITION

​​

Width  -  Tube Size


**General Wind Load 70-90 mph winds. exposure 'C'

(partially surrounded by woods or buildings)

WEIGHT





(LBS)

24 - 15 - 70
18-172;  18-131;  18-13184
28 - 13 - 7018-131-L;  14-100;  11-10067

32 - 7 - 70 or

32 - 5 - 80

18-131;  14-100;  11-100;  11-10070
32 - 9 - 80two 18-131's;  14-131;  14-10088
32 - 16 - 80

18-172;  18-131;  14-131;  14-100

100
32 - 16 - 9022-172; 18-172; 14-131; 11-100109
40 - 1 - 7018-131; 14-100; 14-100; 11-100; 11-10086
40 - 13 - 7018-172;  two 18-131's; 14-100; 11-100115
40 - 14 - 8022-172; 18-172; 18-131; 14-131; 14-100134
40 - 16 - 8022-172; 18-172; 14-172; 14-131; 14-100142
48 - 11 - 8022-172; 18-172; 14-172; 14-172; 14-131; 14-100174
48 - 16 - 8022-225; 22-172; 18-172; 14-172; 14-131; 14-100198
48 - 16 - 9022-225; 18-225-18-172; 14-172; 14-131; 11-100214
48 - 23 - 9030-225; 26-225; 26-172; 22-172; 18-172; 18-131263
48 - 55 - 9035-288; 30-288; 30-225; 26-225; 22-225; 18-172384
56 - 13.5 - 80

26-225; 26-172; 22-172; 18-172; 18-131; 14-131;

11-100

236
56 - 15 - 70

26-172; 22-172; 18-172; 14-172; 14-131; 11-131;

11-100

203
56 - 17 - 80

26-225; 22-225; 22-172; 18-172; 18-172; 18-131;

14-100

266
56 - 20 - 8026-225; two 22-225's; 18-172; 18-172; 18-131; 14-100285
56 - 4 - 9026-172; 22-172; 18-172; 18-131; 14-131; two 11-100's221
56 - 9.5 90

26-225; 22-225; 22-172; 18-172; 18-131; 14-131;

11-100

290
56 - 21 - 9030-288; two 26-25's; 26-172; 22-172; 18-172; 18-131343
56 - 56 90

35-350; 35-288; 30-288; 30-225; 26-225; 22-225;

18-172

522
64 - 6 - 70

26-172; 22-172; 18-172; 18-131; 14-131; 14-100;

two 11-100's

206
64 - 9.4 - 90Two 26-225's 22-225; 22-172; 18-172; 18-131; 14-131; 11-100311
64 - 10 - 70

26-172; 22-172; two 18-172's; 18-131; 14-131; 14-100;

11-100

227
64 - 19 - 75Two 26-225's; 22-225; 22-172; 18-172; 18-172; 14-131; 11-100341
64 - 14 - 80Two 26-225's; 22-225; 22-172; 18-172; 18-131; 14-131; 11-100330
64 - 21 - 80Two 30-225's; 26-225; 22-225; 22-172; 18-172; 18-131; 14-100355
64 - 17.6 - 90

30-288; 30-225; 26-225; 22-225; 22-172; 18-172;

two 18-131's

383
64 - 18.7 - 9030-288; 30-225; 26-225; 22-225; 22-172; 18-172; 18-131; 14-100375
64 - 27 - 90

35-288; 30-288; 30-288; 26-225; 22-225; 22-172; 18-172;

18-131

445
72 - 5 - 70

Two 26-172's; 22-172; 18-172; 18-131; 14-131; 14-100;

two 11-100's

248
72 - 24.5 - 7030-288; 26-225; 22-225; two 18-225's;  18-172; 14-172; 14-131; 14-100393
72 - 31 - 80

Two 35-288's; 30-288; 30-225; 26-225; 22-225; 22-172

; 18-172; 14-172

539
72 - 30 - 80

Two 35-288's;  35-225; 30-225; 26-225; 22-225; 22-172;

18-172; 14-131

512
72 - 14 - 80

30-288; 26-225; 22-225; two 18-225's; 18-172; 14-172;

14-131; 14-100

392
80 - 6 -90

30-288; 30-225; 26-225; 22-225; 18-225; 18-172; 14-172;

14-131; 14-100; 11-100

445
80 - 18 - 80

Two 30-288's; 30-225; 26-225; 22-225; 18-225; 18-172;

14-172; 14-131; 11-100

503
80 - 11.5 - 90

35-288; 30-288; 30-225; 26-225; 22-225; 18-225; 18-172;

14-172; 14-131; 14-100

507
80 - 13 - 90

35-288; 30-288; 30-288; 26-225; 22-225; 22-225; 22-172;

18-172; 14-131; 14-100

451
80 - 22 - 80

35-288; two 30-288's; 30-225; 26-225; 22-225; 22-172;

18-172; 18-131; 14-100

543
88 - 10.5 - 80

Two 30-288's; 30-225; Two 26-225's; 26-172; 22-172;

18-172; 18-131; 14-131; 11-100

544
88 - 16 - 80

Two 35-288's; 35-225; 30-225; 26-225; 22-225; 18-225;

18-172; 14-172; 14-131; 14-100

577

96 - 3 - 90 or

96 - 8.5 - 80

35-288; two 30-288's; 30-225; 26-225; 22-225; 22-172;

18-172; 14-172; 14-131; 14-100; 11-100

587
96 - 16 - 7035-288; two 30-288's; two 30-225's; 30-172; 26-172; 22-172; 18-172; 18-131; 14-131; 14-100596
104 - 5.5 - 70

35-288; two 30-288's; 30-225; 26-225; two 22-225's;

22-172; 18-172; 14-172; 14-131; 11-131; 11-100

647
112 - 8 - 70

35-288; two 30-288's; 30-288; 26-225; two 22-225's;

22-172; two 18-172's; 14-172; 14-131; two 11-100's

678
112 - 9 - 70

Two 35-288's; two 30-288's; 30-225; 26-225;

two 22-225's; 22-172; 18-172; 14-172; 14-131; 11-131;

11-100

733
120 - 4.4 - 70

Two 35-288's; two 30-288's; 30-225; 26-225; two 22-225's;

22-172; two 18-172's; 14-172; 14-131; two 11-100's

764
124 - 15 - 9054-288-SL; 54-350-L; 48-350-L; 42-350-L; 35-288; 30-288-L; 26-288-L; 22-225; 18-225-L; 18-172; 18-131; 14-1001655
148 - 4 - 80

Four 35-288-SL's; 30-350-L; two 30-288's; 26-225;

two 22-225's; 22-172; 18-172; 18-131; 14-131; two 11-100's

2019
148 - 14.25 - 90

Two 48-288-SL's; 42-288-SL; three 35-288-SL's; 35-350-L;

30-288-L; 26-288-L; 26-288-L; two 22-225's;  18-172; 18-131;

14-100

2817
148 - 3 - 90

42-288-SL; three 35-288-SL's; 35-350-L; 35-288; 30-288;

26-288; 26-225; 22-225; 18-225; 18-172; 14-72; 14-131;

two 11-100's

2426
164 - 4 - 80

Five 35-288-SL's; 30-350-L; two 30-288's; 26-288;

two 22-225's; 22-172; 18-172; 14-172; 14-131; 14-100;

11-100-L

2406
176 - 4 - 80

48-288-SL; 42-288-SL; four 35-288-SL's; 30-350-L;

Two 30-288's; 26-288; 26-225; 22-225; 22-172; 18-172;

14-172; 14-131; 14-100; 11-100

2834
180 - 12.75 - 75

48-288-SL; 42-288-SL; four 35-288-SL​'s; two 35-350-L's;

35-288-L; 30-288-L; 26-25; 22-225; 18-225; 18-172; 14-172; 14-131; 11-100-L

3613
188 - 3.5 - 8054-288-SL; 48-288-SL; 42-288-SL; four 35-288-SL's; 30-350-L; two 30-288's; 26-288; 26-225; 22-225; 22-172; 18-172; 14-172; 14-131; 14-100; 11-1003249
200 - 3.6 - 80

54-350-SL; 54-288-SL; 48-288-SL; 42-288-SL;

four 35-288-SL's; 35-350-L; 35-288-L; 30-288; 26-288; 26-225; 22-225; 22-172; 18-172; 14-172; 14-131; 14-100; 11-100

3875


DESIGNATION


Height (ft.) --

WindLoad (sq.ft.)

Windspeed (mph)


​FT.  LOAD  MPH

SECTION COMPOSITION


Width  -  Tube Size


**High Winds 100+ mph winds. exposure 'D'

(Open plains or coastal locations)

WEIGHT





(LBS)

32 - 17 - 90

exposure 'D'

(coast)

26-172; 22-172; 18-172; 18-131139

40 - 2.1 - 150

exposure 'D'

(coast)

26-225; 22-225; 18-172; 18-131; 14-100193

40 - 15.5 - 120

exposure 'D'

(coast)

26-288; 26-225; 22-225; 18-172; 14-131294

40 - 21.67 - 120

exposure 'D'

(coast)

30-288; 26-288; 22-225; 22-172; 22-131

334

48 - 5 - 100

exposure 'D'

(coast)

30-225; 26-225; 22-225; 18-172; 14-131;

14-100

253

56 - 4 - 130

exposure 'D'

(coast)

35-288; 30-288; 26-225; 22-225; 1-172; 18-131;

14-100

361

64 - 10 - 90

exposure 'D'

(coast)

30-288; 30-225; 26-225; 22-225; 22-172; 18-172;

14-131; 14-100

377

64 - 15.2 - 90

exposure 'D'

(coast)

30-288; 26-288; 26-225; 22-225; 18-225; 18-172; 18-131; 14-100

409

68 - 2 - 120

exposure 'D'

(coast)

30-350-L; 30-288; 26-288; 22-225; 22-172; 18-172; 18-131; 14-131467

80 - 10 - 150

exposure 'D'

(coast)

48-288-SL; 42-288-SL; 35-288-SL; 35-350-L; 30-288; 26-225; 22-172; 18-1311779

We offer many different tower configurations.  Take a look at the list below or contact us for advice on choosing a configuration to fit your application.

*Many more configurations are available.  The height & wind-load configurations here do not necessarily represent the highest or strongest combinations available.

DESIGNATION


Height (ft.) --

WindLoad (sq.ft.)

Windspeed (mph)


​FT.  LOAD  MPH

SECTION COMPOSITION


Width  -  Tube Size


**High winds 100+ mph winds. exposure 'C'

(partially surrounded by woods or buildings)

WEIGHT





(LBS)

20 - 7 - 115
14-131-L; 14-10037
32 - 6 - 11018-172; 18-131; 14-100100

32 - 10 - 100

22-172; 18-172; 14-131; 11-100109
32 - 3.5 - 15022-225; 22-172; 18-131; 14-100133
32 - 5 - 150

26-225; 22-225; 18-172; 14-131

174
40 - 10 - 10022-172; two 18-172's; 14-131; 14-100146
40 - 3.5 - 12018-172; 14-172; 14-131-L; 14-100-L120
40 - 14.25 - 12026-225; 22-225; 22-172; 18-172; 14-131214
40 - 18 - 130 or 40 - 22.75 - 12026-288; 26-225; 22-225; 18-172; 18-131257
48 - 1.4 - 100Two 18-172's; 18-131; 14-131; 14-100; 11-100148
48 - 10 - 10022-225; 18-225; 18-172; 14-172; 14-131; 14-100215
48 - 7.5 - 140Two 35-288's; 30-225; 26-225; 22-172; 18-131357
56 - 31 - 10035-288; two 30-288's; 26-225; 22-225; 22-172; 18-131428
56 - 17 - 120Two 35-350's 35-288; 30-225; 26-225; 22-172; 18-131547
60 - 10 - 12035-288-L; 30-288; 26-225; 22-225; 18-172; 14-172; 14-131391
60 - 14 - 120

30-350-L; two 26-288's; 22-225; 18-225; 18-172; 14-131

458
60 - 20.4 - 120

35-350-L; 35-288; 30-288; 26-225; 22-225; 18-172; 18-131

545
64 - 14 - 99

30-288; 30-225; 26-225; 22-225; 22-172; 18-172; 18-131;

14-100

375
72 - 14 - 90

35-288; 30-288; 30-225; 26-225; 22-225; 22-172; 18-172;

18-131; 14-100

461
72 - 7 - 100Two 30-288's; 26-225; 22-225; 18-225; 18-172; 14-172; 14-131; 11-100439
80 - 7 - 100

35-288; 30-288; 26-288; 22-225; 18-225; 18-172; 14-172;

14-131; 11-100

525
84 - 3 - 140Two 35-288-SL's; 35-350-L; 35-288; 30-225; 26-225; 22-172; 18-131; 14-1001351
88 - 3.5 - 100

Two 35-288's; 30-288; 26-225; 22-225; 18-225; 18-172;

14-172; 14-131; 14-100; 11-100

478
92 - 3.5 - 150

48-288-SL; 42-288-SL; 35-288-SL; 35-350; 30-288; 26-288;

22-225; 22-172; 18-131; 14-100

1739
92 - 4.35 - 100

35-350-L; 35-288; 30-288; 26-288; 26-225; 22-225; 22-172;

18-172; 18-131; 14-100; 11-100

1286
92 - 23.5 - 100

Two 35-288-SL's; 35-350-L; 30-350-L; 26-288-L; 22-225;

18-225; 18-172; 18-131

1341
96 - 23 - 110

42-288-SL; 42-350-L; 35-350-L; 35-288-L; 30-225; 26-225;

22-172; 18-131

1315
96 - 23.5 - 11042-288-SL; two 35-288-SL's; 35-350-L; 35-288; 30-288; 26-288; 22-225; 22-172; 18-1311640
96 - 12.25 - 15048-350-SL; 48-288-SL; 42-288-SL; 35-288-SL; 35-350; 35-288; 30-288; 26-225; 22-172; 18-1311991
100 - 9.75 - 110

Two 35-288-SL's; 35-350-L; 35-288; 30-288; 30-225; 26-225; 26-172; 22-172; 18-131; 14-100

1313

100 - 9.75 - 12042-288-SL; two 35-288-SL's; 35-350; 35-288; 30-288; 30-225; 26-225; 22-172; 18-172; 14-1311661
104 - 4.1 - 100

35-288-SL; 35-350-L; 35-288; 30-288; 26-288; 26-225; 22-225; 22-172; 18-172; 18-131; 14-100; 11-100

1780
104 - 25 - 100

Three 35-288-SL's; 35-350-L; 30-350-L; 26-288-L; 26-225;

22-225; 18-172; 18-131

1702
104 - 25 - 110

42-288-SL; three 35-288-SL's; 35-350-L; 35-288-L; 30-225;

26-225; 22-172; 18-131

1787
104 - 27.5 - 130

48-350-SL; 42-350-SL; 42-288-SL; 35-288-SL; 35-350; 35-288; 30-288; 26-225; 22-172; 18-131

1927
108 - 11.6 - 150

54-350-SL; 54-288-SL; 48-288-SL; 42-288-SL; 35-288-SL;

35-350; 35-288; 30-288; 26-225; 22-172; 18-131

2704
112 - 25.5 - 100

42-288-SL; three 35-288-SL's; 35-350; 30-350-L; 26-288-L;

26-225; 22-225; 18-172; 18-131

2017
112 - 15.5 - 130

Two 42-350-SL's; 42-288-SL; two 35-288-SL's; 35-350-L; 30-288; 26-288; 22-225; 22-172; 18-131

2538
112 - 20.5 - 120

Two 42-350-SL's; 42-288-SL; two 35-288-SL's; 35-350-L; 30-288; 26-288; 22-225; 22-172; 18-131

2538
116 - 3.7 - 100

Two 35-288-SL's; 35-350-L; 35-288; .30-288; 26-288; 26-225; 22-225; 22-172; 18-172; 18-131; 14-100; 11-100

2133
116 - 23.5 - 100

42-288-SL; three 35-288-SL's; 35-350-L; 30-350-L; 26-288-L; 26-225; 22-225; 18-172; 18-131

2079
116 - 24 - 110

54-288-SL; 48-288-SL; 42-288-SL; two 35-288-SL's; 35-350-L; 35-288-L; 30-225; 26-225; 22-172; 18-131

2237
116 - 15.5 - 120

48-350-SL; 48-288-SL; two 42-288-SL's; 35-288-SL; 35-350; 35-288; 30-288; 26-225; 22-225; 18-172; 14-131

2530
116 - 4 - 150

54-350-SL; 54-288-SL; 48-288-SL; 42-288-SL; 35-288-SL;

35-350; 35-288; 30-288; 26-225; 22-172; 18-172; 14-131

2685

120 - 15.5 - 100

Three 42-288-SL's; 42-350-L; 35-350; 35-288; 30-288-L; 26-288; 22-225-L; 22-172; 18-172; 14-131

1894
124 - 24.5 - 10048-288-SL; 42-288-SL; three 35-288-SL's; 35-350; 30-350-L; 26-288-L; 26-225; 22-225; 18-172; 18-1312405
128 - 4 - 130

Two 54-288-SL's; 48-288-SL; 42-288-SL; 35-288-SL; 35-350; 35-288; 30-288; 26-225; 22-225; 18-172; 18-131; 14-100

2459
132 - 25 - 110

Two 54-350-SL's; 54-288-SL; 48-288-SL; two 35-288-SL's; 30-350; 30-288; 26-288; 26-225; 22-172; 18-172

3412
136 - 22.75 - 100

48-350-SL; 48-288-SL; 42-288-SL; three 35-288-SL's; 35-350; 30-350-L; 26-288-L; 26-225; 22-225; 18-172; 18-131

2930
136 - 24 - 100

Two 54-350-SL's; 54-288-SL; 48-288-SL; two 35-288-SL's;

30-288-SL; 30-350-L; 30-288; 30-225; 26-225; 22-172; 18-131

2828
140 - 19.75 - 100

48-350-SL; 48-288-SL; 42-288-SL; three 35-288-SL's;

30-288-SL; 30-350; 26-288; 26-225; 22-225; 18-172; 18-131

2988
168 - 4.25 - 110

Two 54-350-SL's; 54-288-SL; 48-288-SL; 42-288-SL;

two 35-288-SL's; 35-350-L; 35-288-L; 35-288-L; 26-225;

22-225; 18-225; 14-172; 14-131; 11-100

2578
180 - 4.25 - 110

Two 54-350-SL's; 54-288-SL; 48-288-SL; 42-288-SL; three 35-288-SL's; 35-350-L; 30-288-L; 26-288; 22-225; 18-225; 18-172; 14-172; 14-131; 11-100

3982

* Above configurations include a Straight Section ("AC") for the Top Section, to change it to a Top Section w/ Collar see the Tower Section page for price differences.  To select Top Shelf, Thrust Bearing, and Mast Accessories for a tower, see the Accessories page.

Abreviations "L" denote a Long 12 ft. section, and "SL" denotes a Solid Leg Long 12 ft. section.

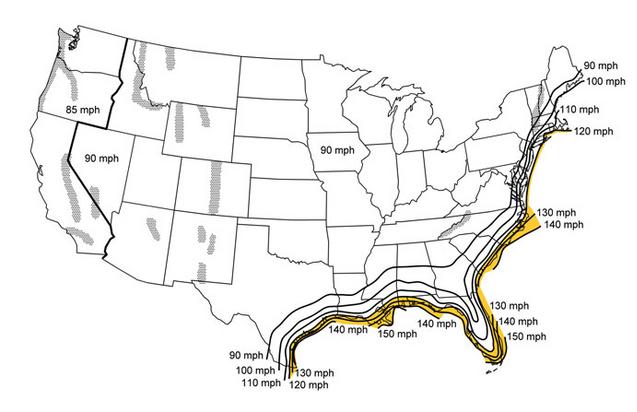

Unless otherwise noted, all of the above configurations are rated at a wind-'Exposure-C' rating.  See our Engineering Specification page (or Building code manuals) for detailed explanation on the definitions of wind Exposure classifications.​

'Hurricane' towers, as shown above, are now available!​

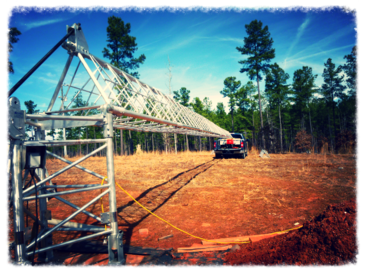

Heights Towers can be mounted on Fold Over Kits just as easily as they can be set on regular 'Hinge Bases'!

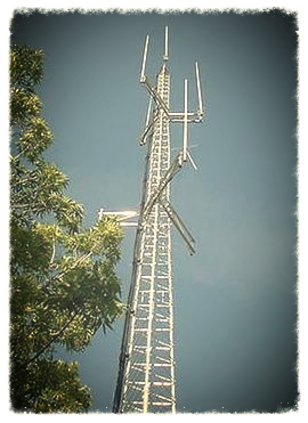

Yes, we have Antenna Stand-offs and most accessories that you might need.

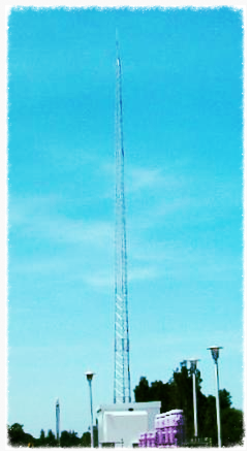

​ Free-Standing, Stacked and Tapered Towers -- from small Roof-top units to heavy duty Hurricane models!


Using our standard aluminum tower sections, many tower configurations of various heights and wind-loads may be created. The table below lists some of them.  Our towers are manufactured for Commercial, Consumer, Government and Industrial use!


TAPERED TOWERS

KEY Benefits

Super Strong

Corrosion Resistant

Light-weight

Nice Looking

Self-supporting

NO Guy Wires
